BSI Landing Valve

The landing valve is used to prevent fire by water, so it is installed in internal or external fire hydrant systems. It is also called indoor hydrant because it is normally installed in the building as a part of wet hydrant system.

Specification
Standard Certificate to BS 5041-1 Approve by BSI
Body Copper alloy, Thickness ≥3mm
Hand wheel Grey cast iron or Aluminum alloy
Black cap Copper alloy or Plastic
Inlet Flanged or BSP Screwed
Outlet Female instantaneous to BS336
Surface Red or yellow painting
Test pressure 22.5 bar
Flow rates More than 8.5L/S
Fully open 4.5 turns

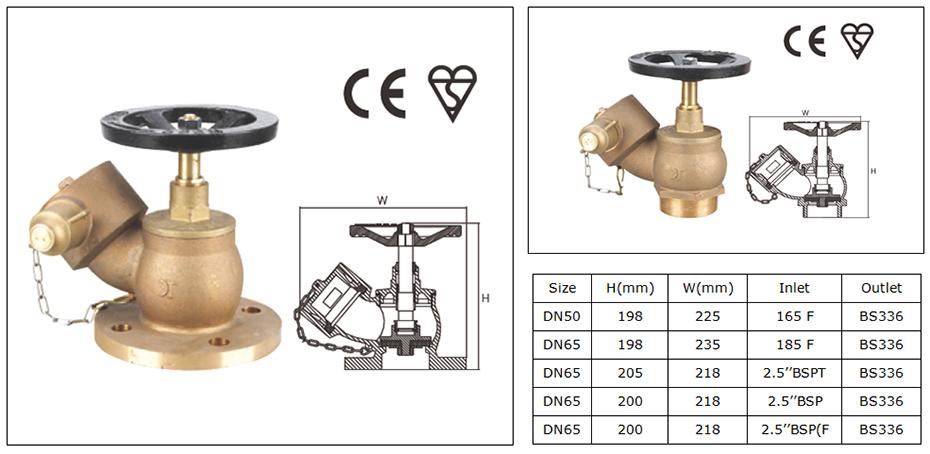

Oblique Type Landing Valve

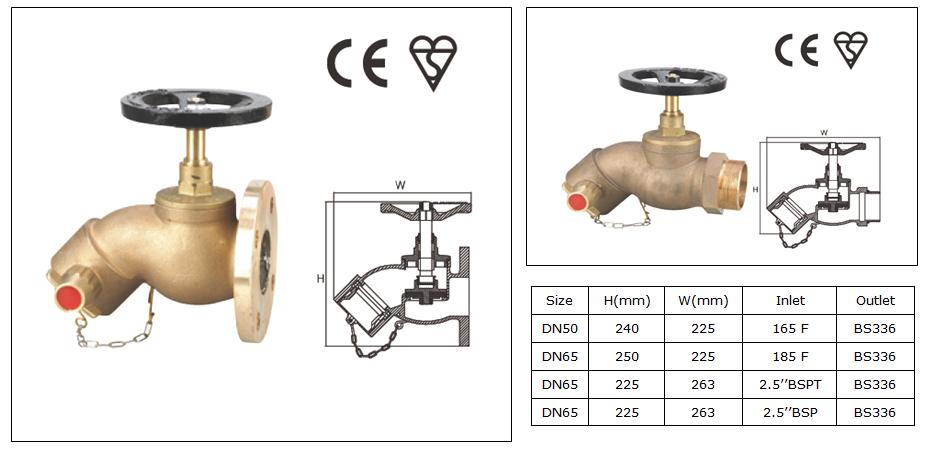

Bib-Nose Type Landing Valve
Horizontal type Landing Valve

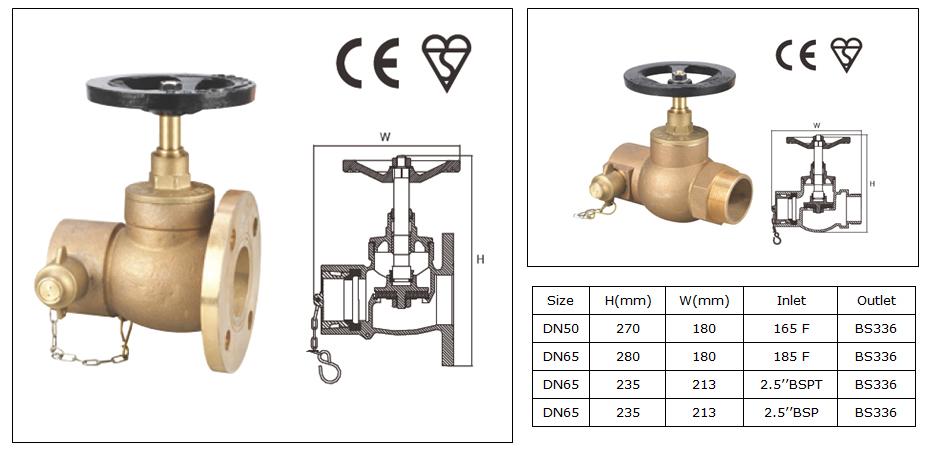

Right Angle Landing Valve
