Fire Hose Rack Assembly

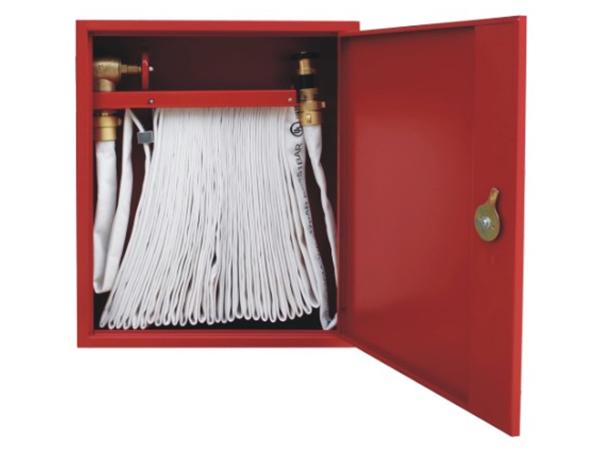

Fire hose cabinet for fire hose rack assembly
The fire hose rack assembly is normally set in the fire hose cabinet.
The common size of the rack can be 1-1/2 inch and 2-1/2 inch. The rack is fixed on fire angle valve.
| Hose Rack Assemble Size | Size(mm) |
| 1.5" / DN40 | 600*720*200 |
| 2.5" / DN65 | 760*800*220 |
Notes: The cabinet is made of 1.0mm carbon steel plate which is sprayed in RAL3000 red. The size of the cabinet can be customized according to customers’ requirements.

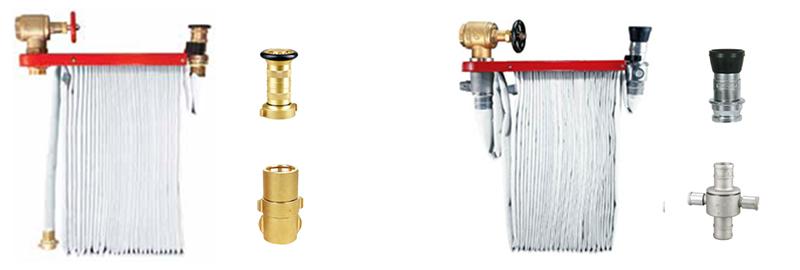

Product description
| Model | Part Specification | Approval |
| America Type (NH) - 1.5" Fire hose rack assembly | 1.5" Brass Angel hose valve | UL FM |
| 1.5" Brass nipple with pin rack | ||
| 1.5"*30m single jacket, EPDM fire hose with NH brass coupling | FM | |
| 1.5" NST Brass jet/spray nozzle | ||
| America Type (NH) - 2.5" Fire hose rack assembly | 2.5" Brass Angel hose valve | UL FM |
| 2.5" Brass nipple with pin rack | ||
| 2.5"*30m single jacket, EPDM fire hose with NH brass coupling | UL FM | |
| 2.5" NST Brass jet/spray nozzle | ||
| B.S - 2.5" Fire hose rack assembly | 2.5" Brass Angel hose valve | UL FM |
| 2.5" Brass nipple with pin rack | ||
| 2.5"*30m single jacket, EPDM fire hose with NH brass coupling | UL FM | |
| 2.5" NST Brass jet/spray nozzle |
