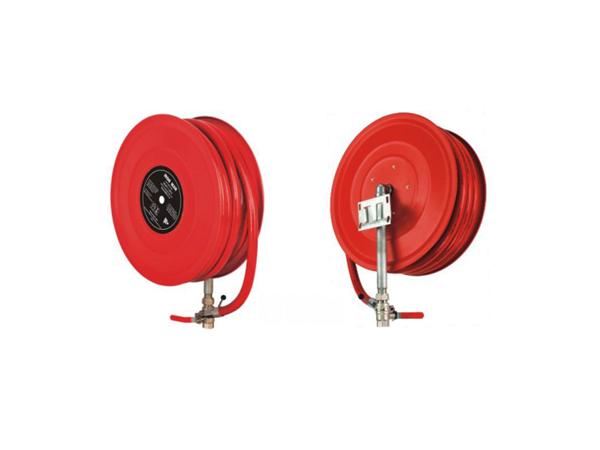

Fire Hose Reel (LPCB Standard)
Fire Hose Reel With Semi-Rigid Hose-LPCB Approval

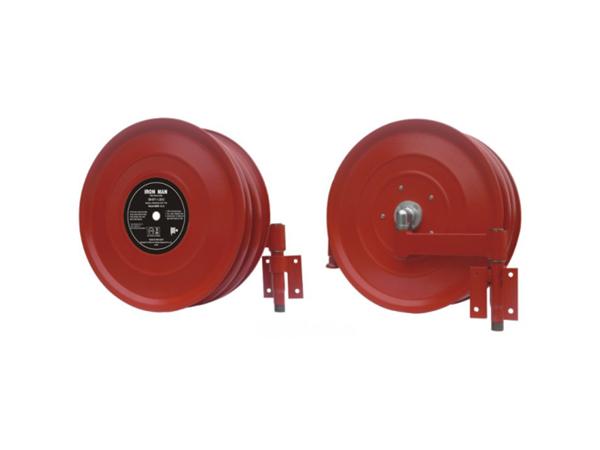

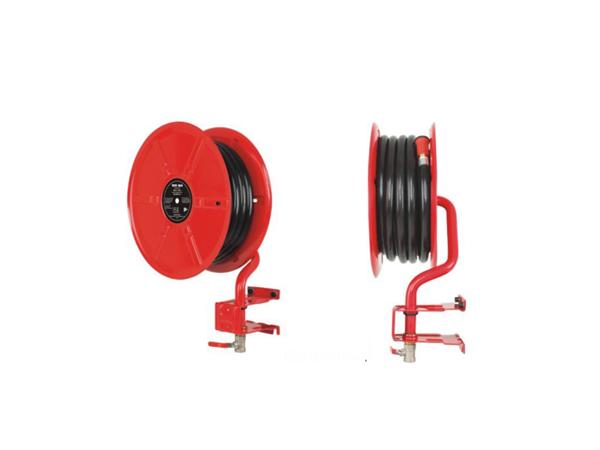

- Swinging Arm Hose Reel
- Swinging Arm Hose Reel
- Swinging Pipe Hose Reel

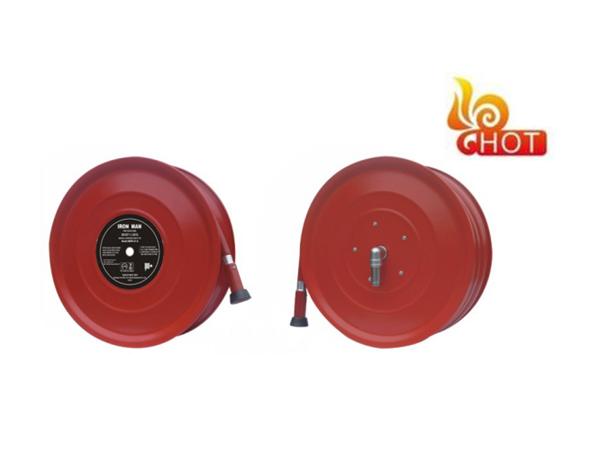

- Fixed Type Hose Reel
Application

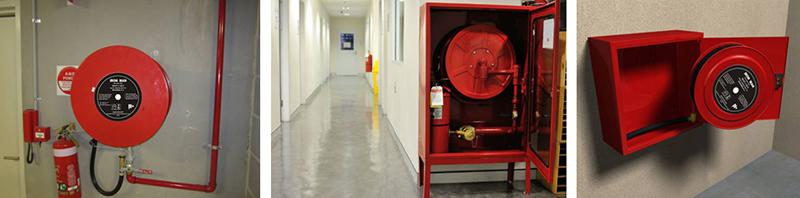

The fire hose reel can be fixed on the wall embedded in fire hose reel cabinet.
Technical parameters

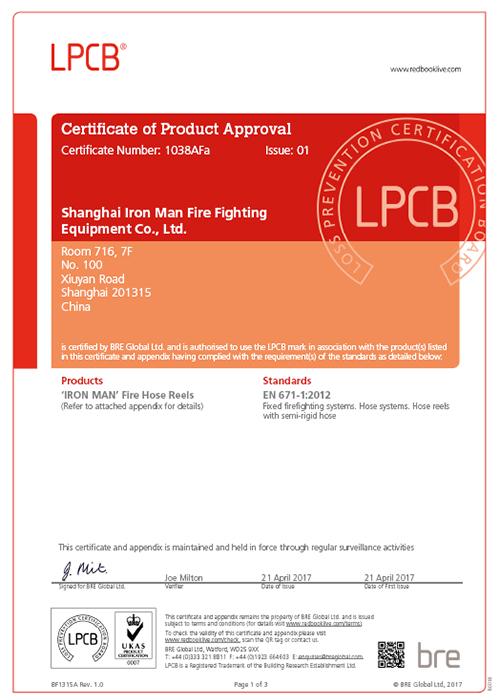

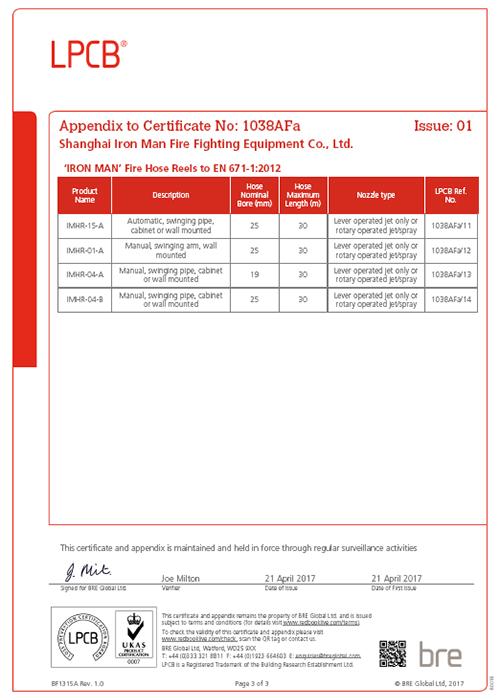

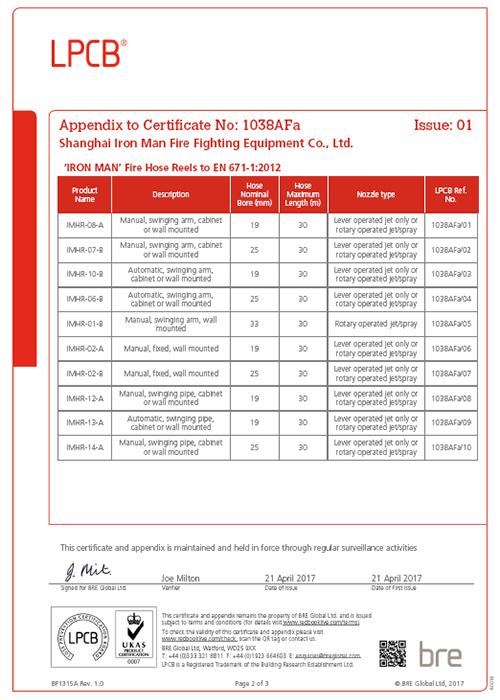

1 It is certified by LPCB, having full range size of Cert ref.1038AFa.
2 It meets BS EN671-1 manufacturing standard.
3 The effective injection distance is 10 meters when the pressure is 0.2 MPa（2 bar）.
4 The minimum flow of the fire hose reel is 41L/min when the pressure is 0.6 Mpa (6bar).
5 The disc covers on both sides of the fire hose reel is made of 1.2mm steel plate so that it has high strength. The fire hose reel is painted red.
| Model | Type | Hose Diameter & Length | Height (A in mm) | Width (B in mm) | Depth (C in mm) |
| IMHR-08-A | Manual,swinging arm, cabinet or wall mounted | 19mm*30m | 555 | 600-610 | 210 |
| IMHR-07-B | Manual,swinging arm, cabinet or wall mounted | 25mm*30m | 600 | 570-580 | 210 |
| IMHR-10-B | Automatic,swinging arm,cabinet or wall mounted | 19mm*30m | 555 | 570-580 | 260 |
| IMHR-06-B | Automatic,swinging arm,cabinet or wall mounted | 25mm*30m | 600 | 610-680 | 230 |
| IMHR-01-B | Manual,swinging arm, wall mounted | 33mm*30m | 740 | 670 | 420 |
| IMHR-02-A | Manual,fixed,wall mounted | 19mm*30m | 720 | 555 | 230 |
| IMHR-02-B | Manual,fixed,wall mounted | 25mm*30m | 720 | 555 | 260 |
| IMHR-12-A | Manual,swinging pipe,cabinet or wall mounted | 19mm*30m | 580 | 620 | 230 |
| IMHR-13-A | Automatic,swinging pipe,cabinet or wall mounted | 19mm*30m | 580 | 620 | 260 |
| IMHR-14-A | Manual,swinging pipe,cabinet or wall mounted | 25mm*30m | 600 | 640 | 250 |
| IMHR-15-A | Automatic,swinging pipe,cabinet or wall mounted | 25mm*30m | 600 | 640 | 260 |
| IMHR-01-A | Manual,swinging arm, wall mounted | 25mm*30m | 816 | 600 | 200 |
| IMHR-04-A | Manual,swinging pipe,cabinet or wall mounted | 19mm*30m | 570 | 580 | 270 |
| IMHR-04-B | Manual,swinging pipe,cabinet or wall mounted | 25mm*30m | 570 | 580 | 300 |

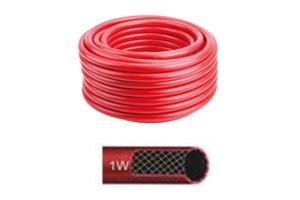

Manufacturing of semi-rigid hose meets BS EN 694:2014 standard.
The outer layer is coated with UV inhibitors to prevent color fading.
| Hose | ID | OD | Max.WP | Min.BP | Adhesion |
| 19mm | 19mm | 25mm | 12Bar | 42Bar | >1.5Kn/m |
| 25mm | 25mm | 32mm | 12Bar | 42Bar | >1.5kN/m |
| 33mm | 33mm | 42mm | 7Bar | 24.5Bar | >1.5kN/m |

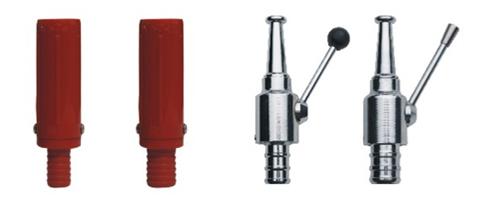

The nozzle has the following functions: jet, spray and switch.
| Model No | Setting | Diameter | Inlet Size | Flow rate at 2bar/6bar (L/Min/Jet/Spray) | Throw Range at 2 bar |
| N-10-1 | Jet/Spray | 6mm | 3/4"(19mm) | >24/41 | >11.2 |
| N-10-2 | Jet/Spray | 8mm | 1"(25mm) | >39/68 | >11.2 |

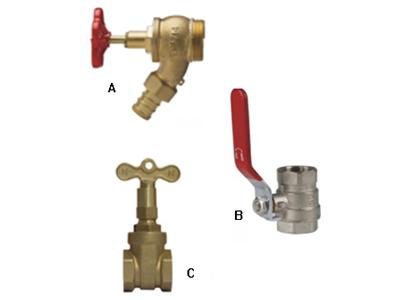

| Model No. | Size | Material | Working Pressure |
| A | 1 1/2"-1" Angle valve | Brass | >18Bar |
| B | 3/4"-3/4" Ball valve | Brass | >18Bar |
| C | 1"-1" Lock shield valve | Brass | >18Bar |

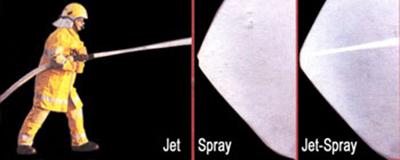

- Operation of nozzle
- Using instruction
Manual fire hose reel
1 Turn on the main valve completely.
2 Pull out the fire hose.
3 Turn on the nozzle, choose jet or spray according to requirements.
4 Aim at the fire.
5 Turn off the nozzle, turn off the valve, pull back the fire hose and make sure the hose is properly wrapped in reels after using.
6 Turn the nozzle on to discharge the remaining water in the hose, then turn off the nozzle.
Automatic fire hose reel
1 Pull out the hose for three turns and turn on the valve.
2 Turn on the nozzle, choose jet or spray according to requirements.
3 Aim at the fire.
4 Turn off the nozzle, turn off the valve, pull back the fire hose and make sure the hose is properly wrapped in reels after using.
5 Turn the nozzle on to discharge the remaining water in the hose, then turn off the nozzle.
Product description
IRON MAN（IMSECUR） fire hose reel is manufactured according to UK (European) standard BS EN 671-1.

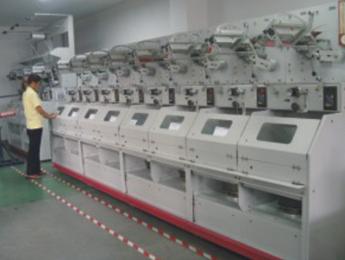

- Twisted by reinforced Polyester
- Technical Engineer

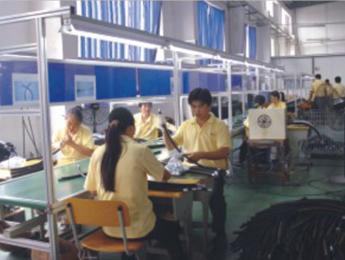

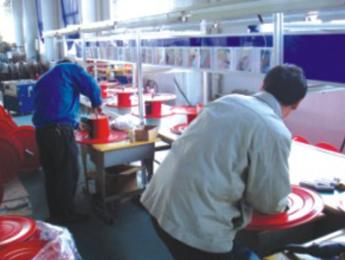

- Assembly line
- Semi Product Warehouse

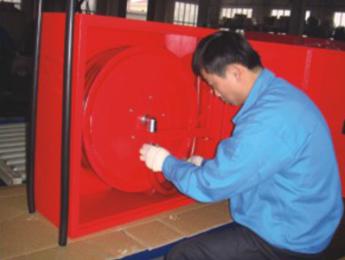

- Cabinet Assembly

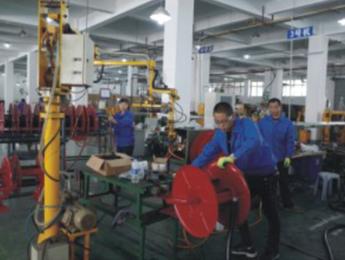

- Assembly line
- Assembly line
- Hose adhesion test

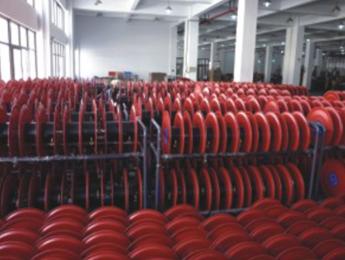

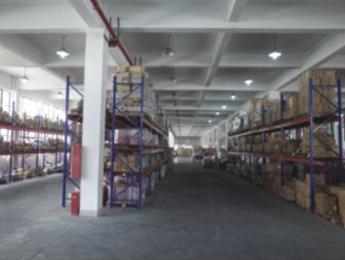

- Warehouse
