Swivel Ring Hanger

SH01
Inquiry Form

Specifications:
Size Range: 1/2" up to 8"
Material: Carbon steel
Finish: Galvanized,other finish available upon request
Service:
a) Recommend for suspension of non-insulated stationary pipe line
b) Manufactured to use the min.rod size permitted by NFPA for fire sprinkler pipe line
Approval: FM Approval and UL Listed

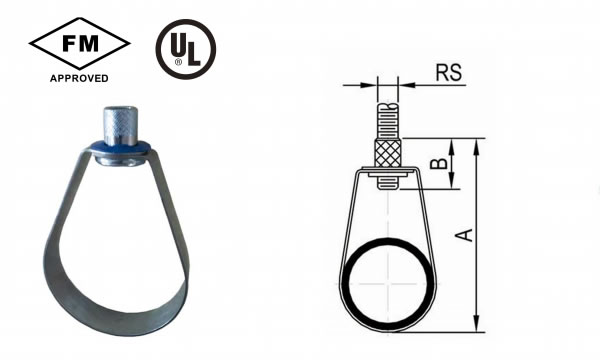

Part Number Nominal Pipe Size RS A B Wt Max.Rex. Load
In mm mm mm mm kg N
SH01-015 1/2 DN15 M10 70 25 0.04 2220
SH01-020 3/4 DN20 M10 78 25 0.04 2220
SH01-025 1 DN25 M10 84 25 0.05 2220
SH01-032 1 1/4 DN32 M10 90 25 0.05 2220
SH01-040 1 1/2 DN40 M10 97 25 0.05 2220
SH01-050 2 DN50 M10 108 25 0.06 2220
SH01-065 2 1/2 DN65 M10 124 25 0.12 4440
SH01-080 3 DN80 M10 144 25 0.14 4440
SH01-100 4 DN100 M10 174 25 0.17 4440
SH01-125 5 DN125 M12 208 32 0.25 8450
SH01-150 6 DN150 M12 245 32 0.31 8450
SH01-200 8 DN200 M12 313 32 0.35 8450
