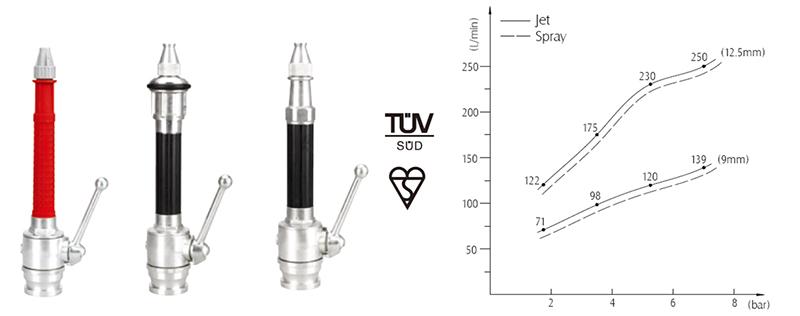

Fire Hose Nozzle / Branch Pipe
Diffuser branch pipe has full flow injection mode or adjustable injection mode. And the mode can be selected from close position.
| Size | Inlet | Outlet | Specification |
| DN50 | G 2" | 9mm | Aluminum alloy coupling with Plastic body |
| CM | Stroz-C | 9mm | Aluminum alloy coupling and body |
| DN65 | BS336 | 12.5mm | Aluminum alloy coupling and body with water curtain(>180 Degree) |

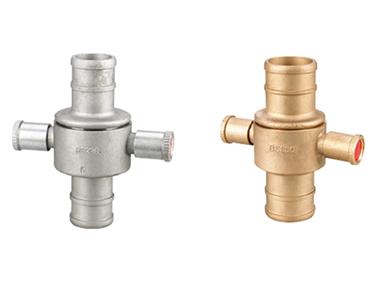

Hose Couplings
As standard hoses are normally equipped with light alloy aluminum male and female BS336 coupling. Other couplings to customers requirement on request. Brass option.
| Size | Head | Tail |
| 1-1/2" | BS336 | 38mm |
| 1-3/4" | BS336 | 45mm |
| 2" | BS336 | 51mm |
| 2-1/2" | BS336 | 63.5mm |
| 2-3/4" | BS336 | 75mm |

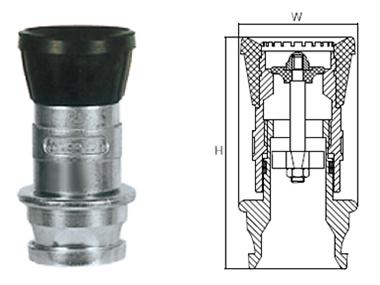

Diffuser
Fog nozzle is made of aluminium alloy. The nozzle adopts adjustable annular hole to adjust the flow rate. You can choose jet or spray by rotating the rubber sleeve that covers the nozzle.
| Size | H(mm) | W(mm) | Inlet | Outlet |
| DN65 | 170 | 86 | BS336 | 20mm |
| DN65 | 170 | 86 | BS336 | 25mm |
