Selectable Gallonage Fire Nozzle

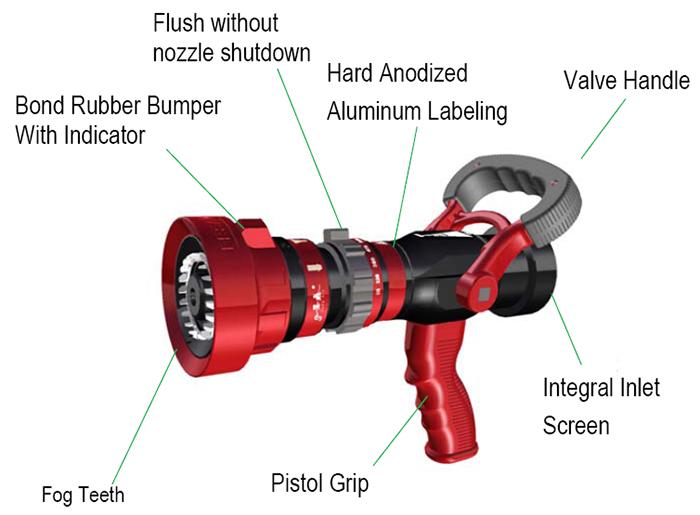

Feaatures

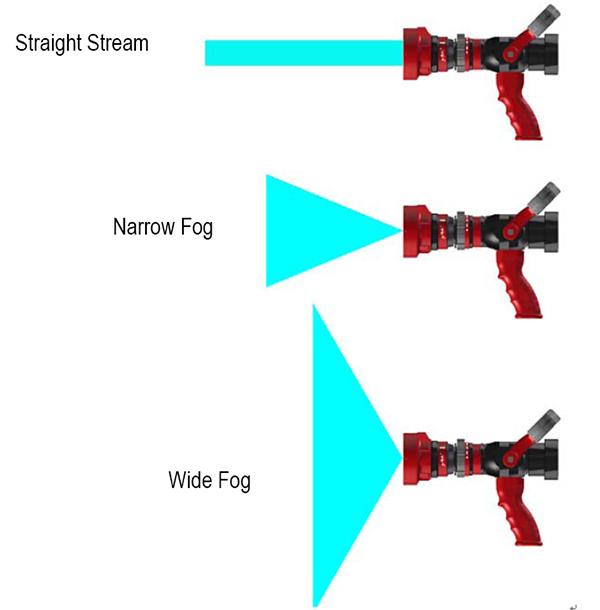

Pattern Identification
Hard Anodized Aluminum labels,Laser Engraved
Simple to operate (1/4 turn from straight stream to fog)
Raised lug marks straight stream for limited visibility operations
Easy to service & repair
Compatible with Quick Attach Foam Tube
| Weight（excl. coupling） | 1.6 kg |
| Material | Body,aluminum |
| Valve | ABS |
| Handle | ABS |
| Bumper | rubber |
| Work Pressure | 87PSI (6 bar) |
| Max. Pressure | 360PSI (25bar) |
| Max. fog angle | 120° |

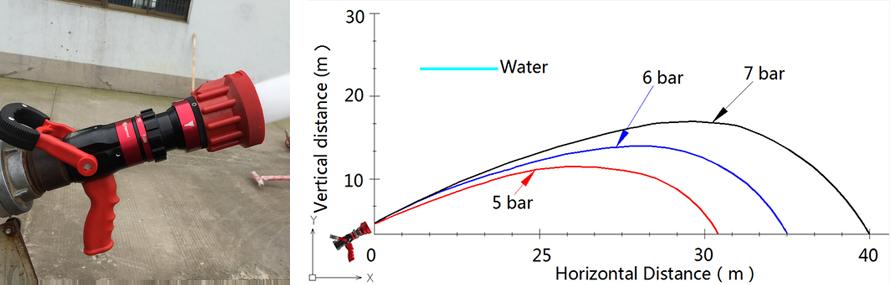

| Throw range | 40m @ 6bar |
| Flow range | 115 L/S@6bar, 230 L/S@6bar, 360 L/S@6bar, 475 L/S@6bar |
| Inlet size | 1.5"（40mm） |
| Coupling | Storz / NH / BSP /Russian type etc. |

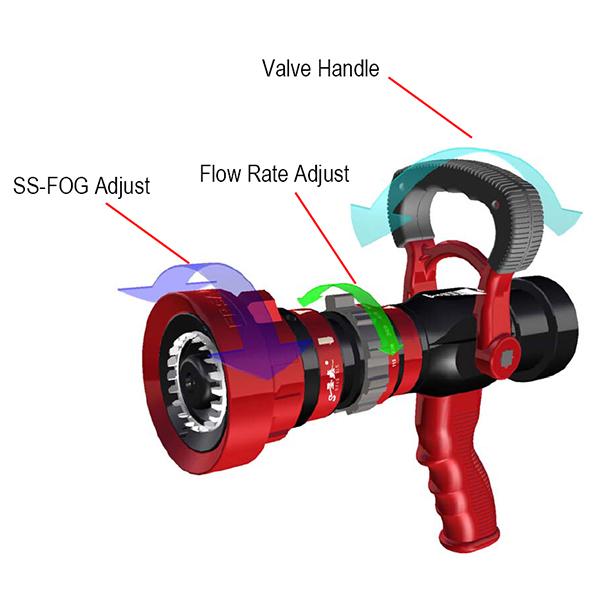

Valve Close: Push the handle forward
Valve Open: Pull the handle backward
Flow rate adjust: Twist the flow adjust ring to obtain required flow rate
SS-FOG Pattern: Twist the rubber bumper
Product readme
Iron Man slectable Gallonage Nozzle can according to the requirements of different markets,offer the different hose couplling,and asemble with the fire hose.
