The UL FM Indicator Post is designed for use with NRS gate valves
FM Approved&UL Listed

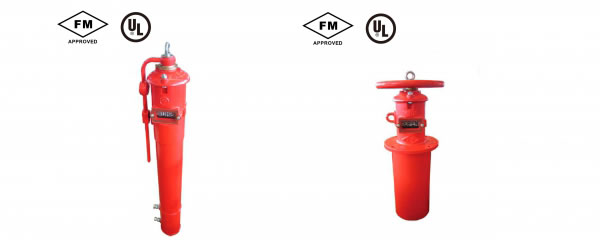

Two types can be choose: Wall type post and Adjustable upright post
Other sizes are available upon request.
Material: ductile iron

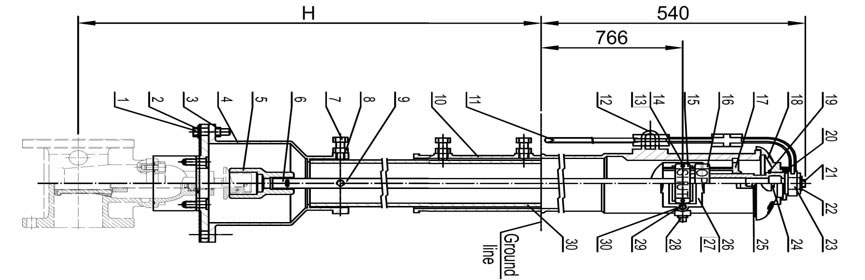

Part | Specification | Part | Specification |
1.Hexagon Bolt | ASTM A105 | 18.Bonnet | ASTM A536 |
2.Washer | ASTM A105 | 19.Circlip | 65Mn |
3.Hexagon Nut | ASTM A105 | 20.Head Screw | ASTM A105 |
4.Seat | ASTM A536 | 21.Hexagon Bolt | ASTM A105 |
5.Wrench Socket | ASTM A536 | 22.Big Washer | ASTM A105 |
6.Cotter Pin | ASTM A105 | 23.Operating Nut | ASTM C61400 |
7.Hexagon bolt | ASTM A105 | 24.T Bolt | ASTM A105 |
8.Hexagon Nut | ASTM A105 | 25.Square Nut | ASTM A105 |
9.Operating Bar | ASTM A105 | 26.Cover Board | PMMA |
10.Barrel | ASTM A536 | 27.Gasket | Silicon Rubber |
11.Wrench | ASTM A536 | 28.Plug | KT30-16 |
12.Special U-Bolt | ASTM A105 | 29.Head Screw | ASTM A276 |
13.Slotted Pan | ASTM A105 | 30.Washer | ASTM A105 |
14.Hexagon nut | ASTM A105 | 31.Stand Pipe | ASTM A536 |
15.Shut Plate | ZL 101 | ||
16.Open Plate | ZL 101 | ||
17.Loading Bogie | ASTM A126B |
