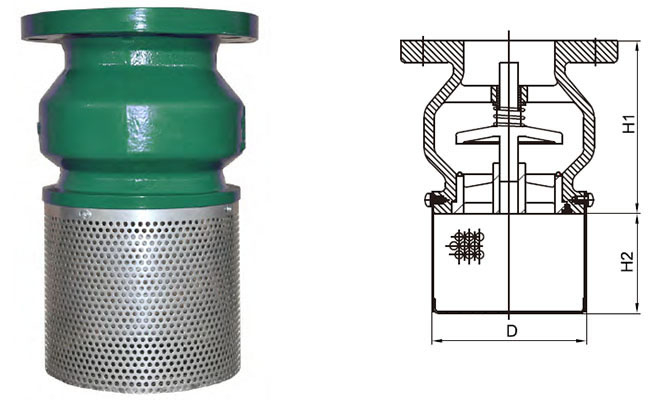

Flanged Type Foot Valve
Material Specifications
| Part |
Material |
ASTM Spec |
| Body |
Cast Iron Ductile Iron |
A126 Class B A536 65-45-12 |
| Disc |
Stainless Steel 304 Bronze |
A351 CF8 B62 C83600 |
| Seat |
Stainless Steel 304 Bronze |
A351 CF8 B62 C83600 |
| Seat Ring |
EPDM/NBR |
Commercial |
| Bushing |
Bronze |
B62 C83600 |
| Spring |
Stainless Steel 304 |
S30400 |
| Screen |
Stainless Steel 304 |
S30400 |
Note: DI Body For PN16&Class 250
Pressure Temperature Ratings
| Working pressure |
16bar/25bar |
| Testing pressure |
Shell:24bar/37.5bar Seal:17.6bar/27.5bar |
| Working Temperature |
-20 to 110 EPDM -10 to 80 NBR |
| Suitable Media |
Water,Oil&Gas |
| DN(mm) |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
| H1 |
133 |
140 |
152 |
185 |
216 |
229 |
257 |
393 |
362 |
| H2 |
68 |
93 |
108 |
138 |
163 |
189 |
208 |
225 |
245 |
| D |
114 |
130 |
144 |
177 |
203 |
237 |
290 |
330 |
383 |
