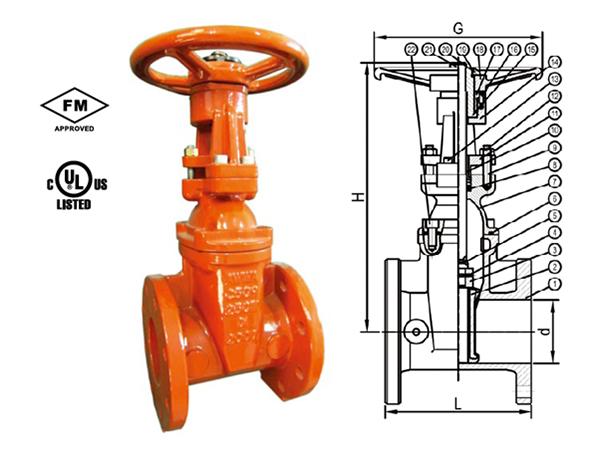

UL FM Flanged-End Gate Valve
◆ Bolted Bonnet. Outside Screw and Yoke. Resilient Wedge
◆ 300PSI/20.7 Bar Non-Shock Cold Working Pressure
◆ Conforms to AWWA C509
◆ FBE Coated Interior and Exterior
◆ Maximum Operating Temperature 185℉/85℃
◆ Flange: ANSI Class 125/150,other flange dimensions are available
◆ FM Approved & UL/ULC Listed
| Part | Specification |
| 1.Valve Body | Ductile Iron ASTM A 536 |
| 2.Resilient Wedge | Ductile Iron ASTM A 536 with EPDM Encapsulation |
| 3.Wedge Nut | Bronze ASTM B 584 UNS C83600 |
| 4.Dowel Pin | Stainless Steel ASTM A276 UNS S42000 |
| 5.Stem Back Seat O-ring | EPDM |
| 6.Bonnet Gasket | EPDM |
| 7.Bonnet | Ductile Iron ASTM A 536 |
| 8.Stem Packing | EPDM |
| 9.Threaded Rod | Carbon steel Zinc Plated |
| 10.Gland Bushing | Brass ASTM B 584 |
| 11.Gland | Cast Iron ASTM A 126-B |
| 12.Gland Nut | Stainless Steel 18-8 |
| 13.Yoke Screw | Alloy Steel ASTM A574M Zinc Plated |
| 14.Yoke | Cast Iron ASTM A126-B |
| 15.Yoke Bushing | Bronze ASTM B 584 |
| 16.Flat Point Set Screw | Alloy Steel ASTM F 912M Black Oxide |
| 17.Yoke Bushing Retainer | Cast Iron ASTM A 126-B |
| 18.Handwheel | Ductile Iron ASTM A 536 |
| 19.Handwheel Nut | Carbon steel Zinc Plated |
| 20.Flat Head Screw | Carbon steel Zinc Plated |
| 21.Stem | Bronze ASTM B 150 UNS C61400 |
| 22.Bonnet Screw | Alloy Steel ASTM A 574M Zinc Plated |
| Part Number | Size(mm) | L (mm) | D (mm) | G (mm) | H Open (mm) | H Close (mm) | Tums To Open | |
| Inch | mm | |||||||
| F907-065 | 2.5 | 65 | 190 | 64 | 200 | 453 | 378 | 8.8 |
| F907-080 | 3 | 80 | 203 | 76 | 254 | 510 | 405 | 10.5 |
| F907-100 | 4 | 100 | 229 | 102 | 254 | 568 | 422 | 13.75 |
| F907-150 | 6 | 150 | 267 | 152 | 315 | 769 | 581 | 16 |
| F907-200 | 8 | 200 | 292 | 203 | 375 | 960 | 724 | 17.5 |
| F907-250 | 10 | 250 | 330 | 254 | 416 | 1139 | 877 | 21.5 |
| F907-300 | 12 | 300 | 356 | 305 | 445 | 1326 | 1014 | 25.5 |
